SC – Solenoid connector interfaces

£1.83

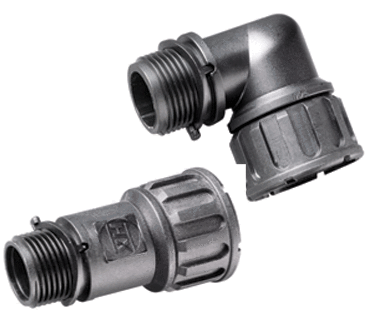

Single junction straight and 90° elbow interfaces providing high integrity connections between AMP Superseal or Junior timer connectors and Harnessflex conduit systems. These fittings are designed to snap together over all types of slit and unslit conduit, maintaining maximum conduit bore. In addition, 90° elbow versions allow the conduit to swivel 360° around the connector housing.

Clear
SKU: SC-XX Category:

Select options and see below for the required accessories to use this product


Required Accessories

In order to make use of this product you will also need the appropriate cap-nuts and seals to suit the diameter of the conduit you wish to connect.
Standard cap-nuts and seals are designed for a specific conduit, while reducing cap-nuts and bushings can accommodate a range of conduit sizes.
One cap nut and one seal is required per conduit connection.

Fittings for NC08 conduit

Cap nut

Price: £0.20

SKU: CN09-08

Add to cart

See product

Seal

Price: £0.23

SKU: RSB12-08

Add to cart

See product

Fittings for NC10 conduit

Cap nut

Price: £0.20

SKU: CN07

Add to cart

See product

Seal

Price: £0.20

SKU: SRN07

Add to cart

See product

Fittings for NC12 conduit

Cap nut

Price: £0.20

SKU: CN09

Add to cart

See product

Seal

Price: £0.22

SKU: SRN09

Add to cart

See product

Fittings for NC08 conduit

Cap nut

Price: £0.20

SKU: CN11-08

Add to cart

See product

Seal

Price: £0.65

SKU: RSB16-08

Add to cart

See product

Fittings for NC12 conduit

Cap nut

Price: £0.20

SKU: CN11-12

Add to cart

See product

Seal

Price: £0.63

SKU: RSB16-12

Add to cart

See product

Fittings for NC16 conduit

Cap nut

Price: £0.20

SKU: CN11

Add to cart

See product

Seal

Price: £0.24

SKU: SRN11

Add to cart

See product

Fittings for NC08 conduit

Cap nut

Price: £0.21

SKU: CN16-08

Add to cart

See product

Seal

Price: £0.70

SKU: RSB20-08

Add to cart

See product

Fittings for NC12 conduit

Cap nut

Price: £0.21

SKU: CN16-12

Add to cart

See product

Seal

Price: £0.70

SKU: RSB20-12

Add to cart

See product

Fittings for NC16 conduit

Cap nut

Price: £0.21

SKU: CN16-16

Add to cart

See product

Seal

Price: £0.70

SKU: RSB20-16

Add to cart

See product

Fittings for NC20 conduit

Cap nut

Price: £0.21

SKU: CN16

Add to cart

See product

Seal

Price: £0.28

SKU: SRN16

Add to cart

See product

Fittings for NC12 conduit

Cap nut

Price: £0.29

SKU: CN21-12

Add to cart

See product

Seal

Price: £0.78

SKU: RSB25-12

Add to cart

See product

Fittings for NC16 conduit

Cap nut

Price: £0.29

SKU: CN21-16

Add to cart

See product

Seal

Price: £0.78

SKU: RSB25-16

Add to cart

See product

Fittings for NC20 conduit

Cap nut

Price: £0.29

SKU: CN21-20

Add to cart

See product

Seal

Price: £0.78

SKU: RSB25-20

Add to cart

See product

Fittings for NC25 conduit

Cap nut

Price: £0.29

SKU: CN21

Add to cart

See product

Seal

Price: £0.33

SKU: SRN21

Add to cart

See product

Fittings for NC20 conduit

Cap nut

Price: £0.43

SKU: CN32-20

Add to cart

See product

Seal

Price: £0.83

SKU: RSB32-20

Add to cart

See product

Fittings for NC25 conduit

Cap nut

Price: £0.43

SKU: CN32-25

Add to cart

See product

Seal

Price: £0.83

SKU: RSB32-25

Add to cart

See product

Fittings for NC28 conduit

Cap nut

Price: £0.43

SKU: CN32-28

Add to cart

See product

Seal

Price: £0.88

SKU: RSB32-28

Add to cart

See product

Fittings for NC32 conduit

Cap nut

Price: £0.43

SKU: CN32

Add to cart

See product

Seal

Price: £0.60

SKU: SRN29

Add to cart

See product

Fittings for NC40 conduit

Cap nut

Price: £0.93

SKU: CN36

Add to cart

See product

Seal

Price: £0.98

SKU: SRN36

Add to cart

See product

Fittings for NC50 conduit

Cap nut

Price: £1.03

SKU: CN48

Add to cart

See product

Seal

Price: £1.15

SKU: SRN48

Add to cart

See product

Optional Accessories

These are some extra products which may be relevant to you, but are not necessarily required to use this fitting.
Note: We always recommend using a face sealing washer if you intend to thread a sealed fitting into a panel knockout.

Face Sealing Washers

Face Sealing Washer: suitable for m12

Price: £0.16

SKU: SWM12

Add to cart

See product

Face Sealing Washer: suitable for m16

Price: £0.18

SKU: SWM16

Add to cart

See product

Face Sealing Washer: suitable for m20

Price: £0.18

SKU: SWM20

Add to cart

See product

Face Sealing Washer: suitable for m25

Price: £0.24

SKU: SWM25

Add to cart

See product

Face Sealing Washer: suitable for m32

Price: £0.24

SKU: SWM32

Add to cart

See product

Face Sealing Washer: suitable for m40

Price: £0.26

SKU: SWM40

Add to cart

See product

Face Sealing Washer: suitable for m50

Price: £0.32

SKU: SWM50

Add to cart

See product

Blanking Caps

Blanking Cap: suitable for 72585

Price: £0.63

SKU: BP72585

Add to cart

See product

Blanking Cap: suitable for m16

Price: £0.34

SKU: BPM16

Add to cart

See product

Blanking Cap: suitable for m20

Price: £0.40

SKU: BPM20

Add to cart

See product

Blanking Cap: suitable for m25

Price: £0.80

SKU: BPM25

Add to cart

See product

Blanking Cap: suitable for m32

Price: £0.93

SKU: BPM32

Add to cart

See product

Blanking Cap: suitable for nc08

Price: £0.36

SKU: BPST08

Add to cart

See product

Description

Screw-thread straight and elbow connectable interfaces for circular solenoids, sensors and switches. These fittings are designed for use with all types of unslit Harnessflex conduit, maintaining maximum conduit bore.

  • IP67 – IP68 (2 bar for 30 minutes) SRN sealing bush protects against ingress of water and dust.
  • Polyamide (Nylon) 66
  • Temperature Range: -40ºC to +150ºC
  • Very high UV resistance
  • Self extinguishing, low smoke toxicity & halogen free.

Conformity

  • ADR approved (NC conduits ONLY)
  • CE Mark to the low voltage directive
  • RoHS Compliant to 2011/65/EU
  • Conforms with end of life vehicle directive (ELV) EU200/53/EC

Additional information

Thread Size

M12, HDP26, M16, M20, M25, M32, M40, M50, PG07, PG09, PG11, PG13.5, PG16, PG21, PG29, PG36, PG48

Configuration

Elbow, Straight
