Description

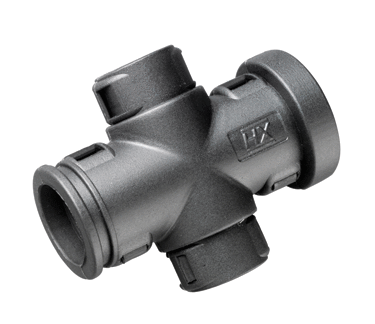

Two-piece X configuration fitting providing protection for in-line connectors, fuse links, circuit breakers and splicing areas. The strong construction allows for the protection of delicate connections, or as an alternative when an interface / backshell isn’t available. These fittings are designed to snap together over all types of slit and unslit Harnessflex conduit, maintaining maximum conduit bore.
- High pull-off strength – Conduit corrugations sit tightly into joiner junctions.
- Conduit size labels – Each junction indicates nominal conduit size to aid installation
- Compact design – Reducing distance between centres.
- Fittings can be linked together for multiple outlet options without the need for short conduit joints
- Polyamide (Nylon) 66
- IP40 rated
- Temperature Range: -40ºC to +120ºC
- Very high UV resistance
- Self extinguishing, low smoke toxicity & halogen free
Conformity
- CE Mark to the low voltage directive
- RoHS Compliant to 2011/65/EU
- Conforms with end of life vehicle directive (ELV) EU200/53/EC
