Harnessflex X Piece sealed fitting

£2.40

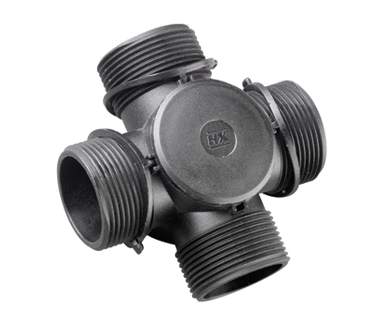

The Harnessflex X piece is a 4 connection sealed fitting.
Cap nut choice enables the use of many conduit diameters on a single body size.
Sealed fittings such as this are designed for unslit conduit, and will maintain peak bore size.
See more information

Back to sealed fittings

Clear
SKU: XPXX Category:

Select options and see below for the required accessories to use this product


Required Accessories

In order to make use of this product you will also need the appropriate cap-nuts and seals to suit the diameter of the conduit you wish to connect.
Standard cap-nuts and seals are designed for a specific conduit, while reducing cap-nuts and bushings can accommodate a range of conduit sizes.
One cap nut and one seal is required per conduit connection.
