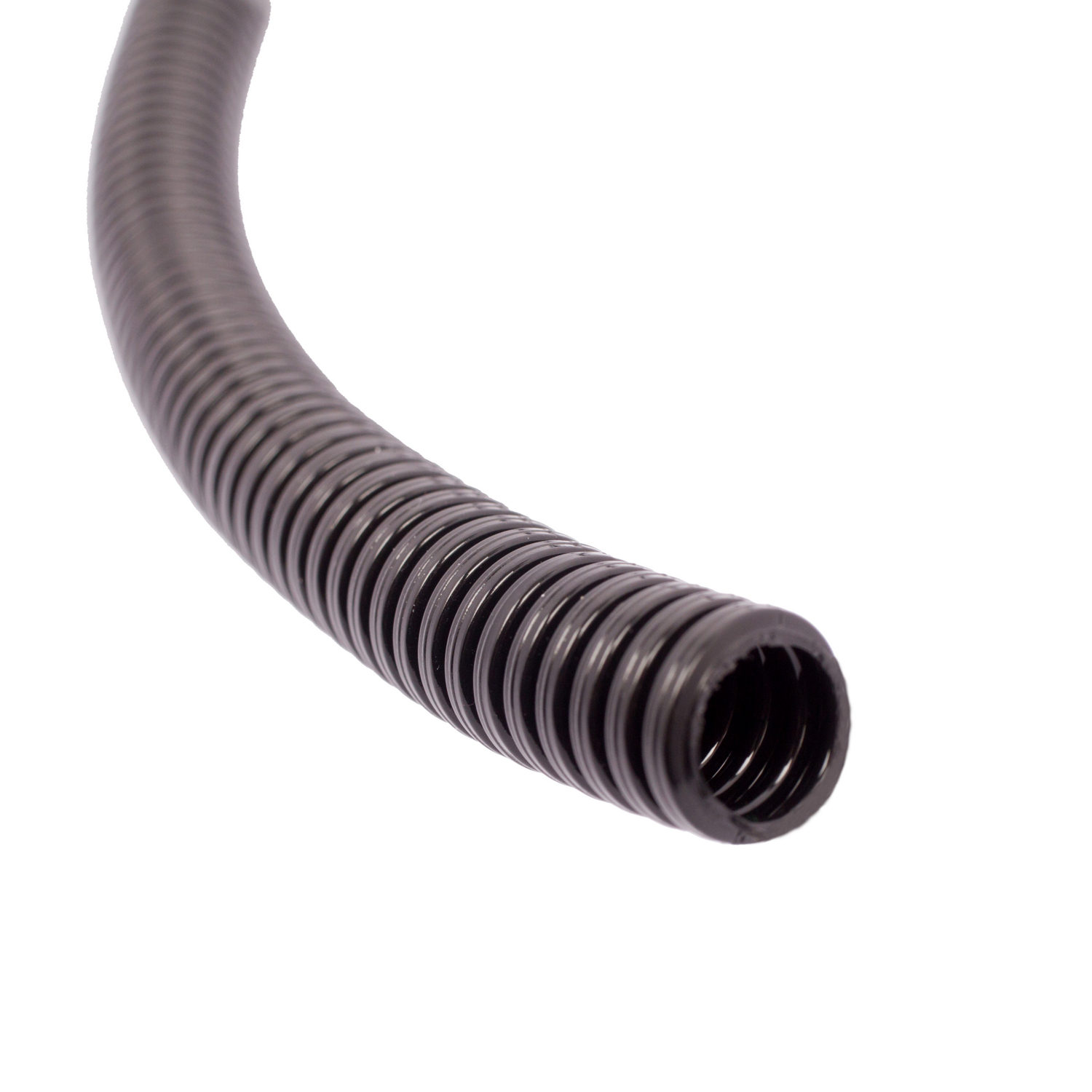

Harnessflex PP Conduit

£19.80 – £43.02

General purpose lightweight and extra flexible, with modified polyamide 6 construction.

SKU: PPXX Category:

Description

Polypropylene conduit, Modified Polypropylene

PP is particularly used in lighter applications where compression strength and LFH is not as important. The main property of this conduit is acid resistance. PP is designed for connection to all Harnessflex Sealed and Hinged system fittings.

  • High flexibility and acid resistance
  • Medium fatigue life, impact and shock resistance
  • Temperature range: -20ºC to +90ºC
    Temperature range short-term: +105°C
  • UV Resistance – High
  • IP40 – IP67 (depending on fittings)
  • Halogen free

Conformity

  • CE Mark to the low voltage directive
  • RoHS Compliant to 2011/65/EU
  • Conforms with end of life vehicle directive (ELV)EU200/53/EC
  • UL94 HB

Additional information

Conduit Size

NC08, NC10, NC12, NC16, NC18, NC20, NC24, NC25, NC28, NC32, NC40, NC50
Conduit Type

Regular, Split
Conduit colour

Green, Black, Orange
Conduit Length

10 metres, 25 metres, 50 metres, 100 metres, 350 metres, 1000 metres
