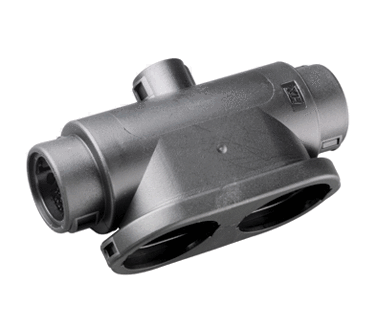

Deutsch DRC50 Series Interface

£0.98£1.98

Single junction straight and 90° elbow interfaces providing high integrity connections between AMP Superseal or Junior timer connectors and Harnessflex conduit systems. These fittings are designed to snap together over all types of slit and unslit conduit, maintaining maximum conduit bore. In addition, 90° elbow versions allow the conduit to swivel 360° around the connector housing.

Clear
SKU: CIXXXXXX-DRC50 Category:

Description

Two identical half shells snap together onto the twin outlets of the Deutsch DRC50 interface giving a 3 Way conduit fi tting. These interfaces are designed to snap together over all types of Harnessfl ex slit and unslit conduit, maintaining maximum conduit bore.

  • One-piece external design for unrestricted bore and quick assembly with no tools.
  • High pull-off strength – conduit corrugations sit tightly into joiner junctions.
  • Conduit size labels – each junction indicates nominal conduit size to aid installation
  • Polyamide (Nylon) 66
  • IP40 rated
  • Temperature Range: -40ºC to +120ºC
  • Very high UV resistance
  • Self extinguishing, low smoke toxicity & halogen free

Conformity

  • CE Mark to the low voltage directive
  • RoHS Compliant to 2011/65/EU
  • Conforms with end of life vehicle directive (ELV) EU200/53/EC

Additional information

Conduit Size

NC06, NC08, NC10, NC12, NC16, NC20, NC25, NC28, NC30, NC32, NC40, NC50

Conduit Size B

NC06, NC08, NC10, NC12, NC16, NC20, NC25, NC28, NC30, NC32, NC40, NC50

Conduit Size C

NC06, NC08, NC10, NC12, NC16, NC20, NC25, NC28, NC30, NC32, NC40, NC50
